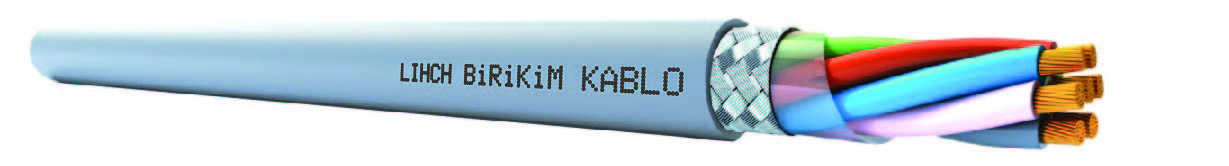

LIHCH
Quality Certificates
You can click on the logos to see the Quality Certificates.
| Application | ||||
|
These cables with halogen-free material are generally used indoors in order to protect human life and valuable goods in the case of fire. The usage areas are: electronic control devices, servo motors, valves, public announcement systems and automation applications where cable flexibility and signal quality is vital. Shielded and braided types provide better protection against electromagnetic interference. |
||||
| Construction | ||||
| Reference Standard | VDE 0812 | |||
| Conductor | IEC 60228, EN 60228, VDE 0295 CLASS-5 Stranded electrolytic annealed copper wire | |||
| Insulation | HFFR | EN 50290-2-26, VDE0207(HI2) | |||
| Colour Code | DIN 47100 *LIHCH-OZ : black cores with numbers | |||
| Lay up | Cores stranded in layers | |||
| Separator | Polyester tape | |||
| Screen | Tinned copper wire braiding | |||
| Outher sheath | HFFR | EN 50290-2-27, VDE0207(HM2) | |||
| Outher Sheath Colour | RAL 7001 Grey | |||
| Specifications | ||||
| Conductor Resistance | ||||
| Cross Section (mm2) | Ω/km (max.) | |||
| 0,14 | 148 | |||
| 0,22 | 96 | |||
| 0,25 | 79,9 | |||
| 0,34 | 53 | |||
| 0,5 | 38,9 | |||
| 0,75 | 26 | |||
| 1 | 19,5 | |||
| 1,5 | 13,3 | |||
| 2,5 | 7,98 | |||
| Operating Voltage | ||||
| Cross Section (mm2) | Voltage | |||
| 0,14 – 0,34 | 250 V | |||
| 0,50 – 2,50 | 300/500 V | |||
| Test Voltage | ||||
| Cross Section (mm2) | Voltage | |||
| 0,14 - 0,22 | 800 V | |||
| 0,22 – 1,00 | 1200 V | |||
| 1,50 – 2,50 | 2500 V | |||
| Insulation Resistance | >200MΩ.km | |||
| Temperature Range | -30°C – +70°C (fixed) | |||
| Min. Bending Radius | 7,5 x cable diameter | |||
| Flame tests | IEC 60332-1-2, EN 60332-1-2, VDE 0482-332-2-1 IEC 60332-2-22, EN 60332-3-22, VDE 0482-332-3-22 |
|||
| Smoke Density | IEC 61034-2, EN 61034-2 | |||
| Corrosive Gas Tests | IEC 60754-1, EN 50267-2 | |||
| Product Code | Number of Cores × Cross section (mm2) | Cable Diameter (mm ±5%) | Copper Weight (kg/km) | Cable Weight (kg/km) |
| 3101200102 | 2x0,14 | 3,7 | 7,8 | 20,5 |
| 3101200103 | 3x0,14 | 3,9 | 10,9 | 26 |
| 3101200104 | 4x0,14 | 4 | 11,7 | 30 |
| 3101200105 | 5x0,14 | 4,5 | 13,7 | 34 |
| 3101200106 | 6x0,14 | 5 | 15,8 | 39 |
| 3101200108 | 8x0,14 | 5,25 | 19 | 47 |
| 3101200110 | 10x0,14 | 6 | 24,7 | 59 |
| 3101200120 | 20x0,14 | 7,5 | 42 | 98 |
| 3101200202 | 2x0,22 | 4,1 | 11,8 | 27 |
| 3101200203 | 3x0,22 | 4,3 | 14 | 32 |
| 3101200204 | 4x0,22 | 5 | 17 | 40 |
| 3101200205 | 5x0,22 | 5,2 | 20 | 44 |
| 3101200206 | 6x0,22 | 5,7 | 22 | 50 |
| 3101200208 | 8x0,22 | 6,1 | 29 | 58 |
| 3101200210 | 10x0,22 | 6,8 | 35 | 77 |
| 3101200220 | 20x0,22 | 9,5 | 60,5 | 130 |
| 3101200302 | 2x0,25 | 4,2 | 13 | 33 |
| 3101200303 | 3x0,25 | 4,5 | 14,5 | 37 |
| 3101200304 | 4x0,25 | 4,9 | 18 | 42 |
| 3101200305 | 5x0,25 | 5,2 | 21,5 | 48 |
| 3101200306 | 6x0,25 | 5,7 | 25 | 55 |
| 3101200308 | 8x0,25 | 6,6 | 30 | 66 |
| 3101200310 | 10x0,25 | 7,2 | 36,4 | 80 |
| 3101200320 | 20x0,25 | 10 | 71 | 140 |
| 3101200402 | 2x0,34 | 4,7 | 16 | 34 |
| 3101200403 | 3x0,34 | 5 | 19 | 39 |
| 3101200404 | 4x0,34 | 5,6 | 23 | 50 |
| 3101200405 | 5x0,34 | 6,2 | 28,5 | 59 |
| 3101200406 | 6x0,34 | 6,6 | 32 | 68 |
| 3101200408 | 8x0,34 | 7 | 40 | 77 |
| 3101200410 | 10x0,34 | 8,2 | 50 | 96 |
| 3101200420 | 20x0,34 | 11 | 92 | 172 |
| 3101200502 | 2x0,50 | 5,2 | 18 | 39 |
| 3101200503 | 3x0,50 | 5,3 | 22 | 51 |
| 3101200504 | 4x0,50 | 6,1 | 28 | 64 |
| 3101200505 | 5x0,50 | 6,8 | 34 | 75 |
| 3101200506 | 6x0,50 | 7,5 | 41 | 89 |
| 3101200508 | 8x0,50 | 8,2 | 54 | 112 |
| 3101200510 | 10x0,50 | 9,3 | 65 | 130 |
| 3101200520 | 20x0,50 | 12,7 | 115 | 238 |
| 3101200802 | 2x0,75 | 5,9 | 23 | 52 |
| 3101200803 | 3x0,75 | 6,1 | 30 | 64 |
| 3101200804 | 4x0,75 | 6,7 | 37 | 79 |
| 3101200805 | 5x0,75 | 7,6 | 46 | 94 |
| 3101200806 | 6x0,75 | 8,8 | 55 | 111 |
| 3101200808 | 8x0,75 | 9,2 | 71 | 124 |
| 3101200810 | 10x0,75 | 10,4 | 88 | 165 |
| 3101200820 | 20x0,75 | 14 | 161 | 296 |
| 3101201002 | 2x1,00 | 6,3 | 29 | 63 |
| 3101201003 | 3x1,00 | 6,5 | 40 | 78 |
| 3101201004 | 4x1,00 | 7,1 | 49 | 95 |
| 3101201005 | 5x1,00 | 8,2 | 61 | 116 |
| 3101201006 | 6x1,00 | 9 | 71 | 138 |
| 3101201008 | 8x1,00 | 10 | 95 | 173 |
| 3101201010 | 10x1,00 | 11,2 | 115 | 204 |
| 3101201020 | 20x1,00 | 15,1 | 216 | 381 |
| 3101201502 | 2x1,50 | 7,3 | 40 | 79 |
| 3101201503 | 3x1,50 | 7,6 | 53 | 98 |
| 3101201504 | 4x1,50 | 8,5 | 68 | 126 |
| 3101201505 | 5x1,50 | 9,4 | 85 | 152 |
| 3101201506 | 6x1,50 | 10,4 | 100 | 180 |
| 3101201508 | 8x1,50 | 11,2 | 129 | 230 |
| 3101201510 | 10x1,50 | 12,8 | 165 | 279 |
| 3101201520 | 20x1,50 | 17,5 | 304 | 500 |
| 3101202502 | 2x2,50 | 8,2 | 59 | 111 |
| 3101202503 | 3x2,50 | 8,8 | 84 | 142 |
| 3101202504 | 4x2,50 | 9,6 | 110 | 191 |
| 3101202505 | 5x2,50 | 10,9 | 135 | 223 |
| 3101202506 | 6x2,50 | 12 | 161 | 268 |
| 3101202508 | 8x2,50 | 13,5 | 205 | 334 |
| 3101202510 | 10x2,50 | 15,5 | 257 | 429 |
| 3101202520 | 20x2,50 | 20 | 485 | 772 |
