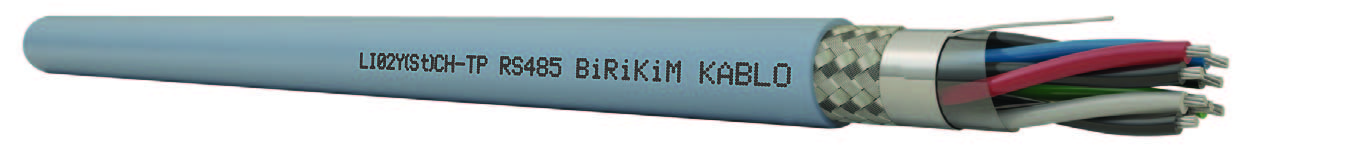

LI02Y(St)CH-TP RS 485
| Application | |||
| They are used in data and information communication in electronic control systems. | |||
| Construction | |||
| Conductor | Stranded tinned electrolytic annealed copper wire | ||
| Insulation | FOAM SKIN PE | EN 50290-2-23 | ||
| Colour Code | Black/red – black/White – black/green – black/blue | ||
| Lay up | Two cores twisted in pair and pairs stranded together | ||
| Separator | Polyester tape | ||
| Foil Screen | Aluminium foil 100% coverage, Tinned copper drain wire | ||
| Screen | Tinned copper wire braiding | ||
| Outer sheath | HFFR | EN 50290-2-27, VDE0207(HM2) | ||
| Outer Sheath Colour | RAL 7001 Grey | ||
| Specifications | |||
| Cross Section(mm2) Ω/km (max.) | |||
| Loop resistance | 0,22mm² 186 | ||
| 0,34mm² 115 | |||
| 0,50mm² 78 | |||
| Mutual Capacitance | 46 pF/m | ||
| Impedance | 120±15 Ω | ||
| Insulation Resistance | >2000MΩ.km | ||
| Operating Voltage | 250 V | ||
| Test Voltage | 1,2 kV | ||
| Temperature Range | -30°C – +70°C / (fixed) | ||
| Min. Bending Radius | 10 x cable diameter | ||
| Smoke Density | IEC 61034-2, EN 61034-2 | ||
| Corrosive Gas Tests | IEC 60754-1, EN 50267-2 | ||
| Flame Tests | IEC 60332-1-2, EN 60332-1-2, VDE 0482-332-2-1 | ||
