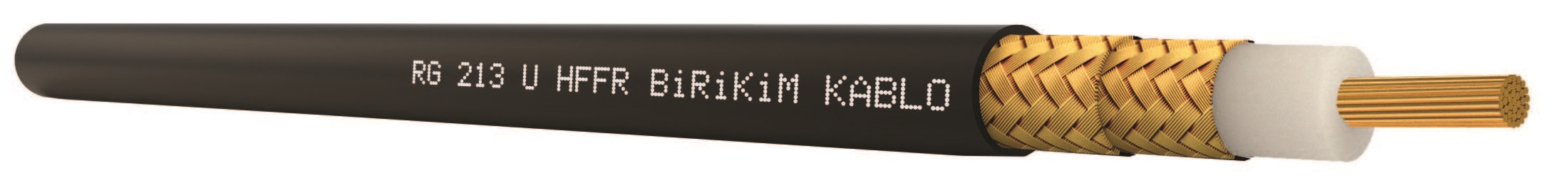

RG 213 U LSZH
| Application | ||||
|
They are used as connection cables at wireless and data communication systems. These cables with halogenfree flame retardant characteristic due to their structures are used in public places such as hotels,schools,hospitals,shopping centers etc. They have low smoke density and they don’t emit poisonous and corrosive gases during a fire therefore they don’t harm human health. . |
||||
| Construction | ||||
| Conductor | 7x0,75 mm Electrolytic annealed copper | |||
| Insulation | 7,25 mm Solid polyethylene | |||
| Screen | Copper wire braiding | |||
| Outher sheath | 10,20 mm HFFR | EN 50290-2-27, VDE0207(HM2) | |||
| Outher Sheath Colour | RAL 9005 Black | |||
| Specifications | ||||
| Impedance | 50 Ω | |||
| Mutual Capacitance | 100 pF/m | |||
| Conductor Resistance | 6 Ω/km(max.) | |||
| Insulation Resistance | >2000MΩ.km | |||
| Operating Voltage | 5 kV (max.) | |||
| Test Voltage | 10 kV | |||
| Temperature Range | -30°C – +70°C (fixed) | |||
| Min. Bending Radius | 20 x cable diameter | |||
| Cable Weight | 165 (kg/km) | |||
| Smoke Density | IEC 61034-2, EN 61034-2 | |||
| Corressive Gas | IEC 60754-1 ,EN 50267-2 | |||
| Attenuations | ||||
| Frequency (MHz) | (dB/100m) | |||
| 100 | 7 | |||
| 200 | 9,4 | |||
| 400 | 14,5 | |||
| 600 | 19 | |||
| 800 | 23 | |||
| 1000 | 25 | |||
| Standard Packing | ||||
| Standard Packing | 100 m Plywood Spool | |||
| 500 m Wood Spool | ||||
| 1000 m Wood Spool | ||||
